Sinusoidal poisson generator example

This script demonstrates the use of the sinusoidal_poisson_generator and its different parameters and modes. The source code of the model can be found in models/sinusoidal_poisson_generator.h.
The script is structured into two parts and creates one common figure. In Part 1, two instances of the sinusoidal_poisson_generator are created with different parameters. Part 2 illustrates the effect of the individual_spike_trains switch.
First, we import all necessary modules for simulation, analysis and plotting.
import nest
nest.ResetKernel()   # in case we run the script multiple times from iPython

import matplotlib.pyplot as plt
import numpy as np



Then we create two instances of the sinusoidal_poisson_generator with two different parameter sets using Create. Moreover, we create devices to record firing rates (multimeter) and spikes (spike_detector) and connect them to the generators using Connect.
nest.SetKernelStatus({'resolution': 0.01})

g = nest.Create('sinusoidal_poisson_generator', n=2, params=[{'rate': 10000.0,
                                                              'amplitude': 5000.0,
                                                              'frequency': 10.0,
                                                              'phase': 0.0},
                                                             {'rate': 0.0,
                                                              'amplitude': 10000.0,
                                                              'frequency': 5.0,
                                                              'phase': 90.0}])

m = nest.Create('multimeter', n=2, params={'interval': 0.1, 'withgid': False,
                                           'record_from': ['rate']})
s = nest.Create('spike_detector', n=2, params={'withgid': False})

nest.Connect(m, g, 'one_to_one')
nest.Connect(g, s, 'one_to_one')
print nest.GetStatus(m)
nest.Simulate(200)

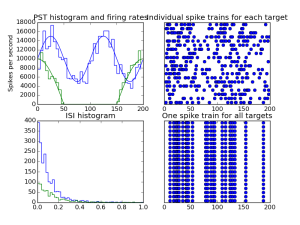

After simulating, the spikes are extracted from the spike_detector using GetStatus and plots are created with panels for the PST and ISI histograms.
colors = ['b', 'g']

for j in range(2):

    ev = nest.GetStatus([m[j]])[0]['events']
    t = ev['times']
    r = ev['rate']

    sp = nest.GetStatus([s[j]])[0]['events']['times']
    plt.subplot(221)
    h, e = np.histogram(sp, bins=np.arange(0., 201., 5.))
    plt.plot(t, r, color=colors[j])
    plt.step(e[:-1], h * 1000 / 5., color=colors[j], where='post')
    plt.title('PST histogram and firing rates')
    plt.ylabel('Spikes per second')

    plt.subplot(223)
    plt.hist(np.diff(sp), bins=np.arange(0., 1.005, 0.02),
             histtype='step', color=colors[j])
    plt.title('ISI histogram')


The kernel is reset and the number of threads set to 4.
nest.ResetKernel()
nest.SetKernelStatus({'local_num_threads': 4})  # show this work for multiple threads

First, a sinusoidal_poisson_generator with individual_spike_trains set to True is created and connected to 20 parrot neurons whose spikes are recorded by a spike detector. After simulating, a raster plot of the spikes is created.
g = nest.Create('sinusoidal_poisson_generator',
                params={'rate': 100.0, 'amplitude': 50.0,
                        'frequency': 10.0, 'phase': 0.0,
                        'individual_spike_trains': True})
p = nest.Create('parrot_neuron', 20)
s = nest.Create('spike_detector')

nest.Connect(g, p, 'all_to_all')
nest.Connect(p, s, 'all_to_all')

nest.Simulate(200)
ev = nest.GetStatus(s)[0]['events']
plt.subplot(222)
plt.plot(ev['times'], ev['senders']-min(ev['senders']), 'o')
plt.ylim([-0.5, 19.5])
plt.yticks([])
plt.title('Individual spike trains for each target')



The kernel is reset again and the whole procedure is repeated for a sinusoidal_poisson_generator with individual_spike_trains set to False. The plot shows that in this case, all neurons receive the same spike train from the sinusoidal_poisson_generator.
plt.title('One spike train for all targets')
